A Holographic Projection Screen Mesh (often called “Holographic Film,” “Holographic Gauze,” or “Holoscreen”) is a specialized translucent fabric or film material used for stage illusions, exhibitions, retail displays, and events to create the “ghost-like” appearance of a 3D image or video floating in mid-air.
Hologram Gauze Screen is the most common name used in the entertainment and stage industry for the material we just discussed. It’s a specific type of holographic projection screen made from a fabric (gauze) rather than a rigid film.
Hologram Gauze Screen: The Stage Illusion Specialist
Hologram Gauze Screen is the perfect solution for live events, allowing participants to make presentations behind our near-invisible gauze while informative and entertaining holographic effects appear to float in front and around them.
Imagine a hologram that looks so real that 3D objects appear to float in mid-air or surround a performer on stage. That’s where 3D Hologauze Screen plus comes in! This highly transparent hologauze screen has an exceptional width of 10m, allowing impressively large and seamless hologram projections.
Hologauze hologram screen is extremely lightweight and foldable and therefore very easy to transport. It can be set up in no time. Attach it to a truss, lighting bar or frame and you are ready to amaze your audience! Tensioning the fabric on all 4 sides and using the right projector are key to obtain the best results.

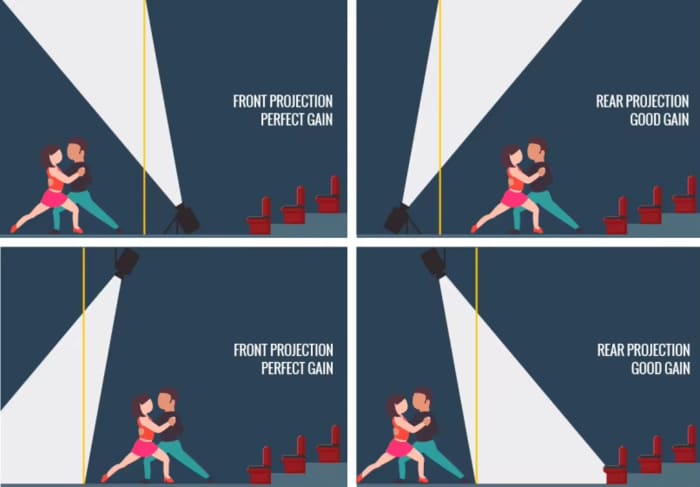

Use 3D Holo gauze Screen for both front and rear projections. The screen is used vertically, so less space is lost in the performance area as there is no need for a 45° mirror and a stage pit with projection screen. On top of that, it does not reflect ambient light!
Mesh Holographic screen Features
Lightweight and Foldable
Lightweight and foldable value of Hologauze hologram screen is essential. This means that Hologauze hologram screen doesn’t require significant transportation considerations. The holo gauze screen material can simply be packed as with other materials and then taken to the next venue.
Vertical Screen
The design of Hologauze hologram screen also means that production teams have more space to work with on-stage when working with the material. Unlike other holographic systems, Hologauze hologram screen is designed to be used vertically, limiting the need for large amounts of stage space.
Simple Setup Process
Teams simply have to attach it to the truss, lighting bar, or frame, and then tension the material. They are then ready to begin projecting content onto the hologauze to delight their audience.
Unparalleled Effects
Hologram screen can be used to create truly unparalleled effects that the average audience member has never before seen on-stage. The holograms created by the hologauze system look real and the way in which the artist interacts with the holograms makes it appear as if a tangible connection is being made. This will add clear value to any production and can help to immerse audiences of all ages in the production.
| Imaging ratio | 16:9 |
| Origin | China |
| Style | Holographic Display |
| MOQ | 6 |
| Color | Grey, Black, White |
| Format | 16:9/4:3/1:1 |
| Projection Type | Rear and Front |
| Gain | 0.15 |
| View Angle | 160° |
| Weight | 17g/m2 |
Transparent Holographic screen Applications:
TO CREATE 3D FLOATING ANIMATIONS
You can use hologram screen to create 3D floating animations that look as if they’re moving with the action on the stage. The floating animations have no clear connection to outside technology from the audience’s perspective, truly providing an immersive show experience.
INTERACTION BETWEEN THE ARTIST AND THE 3D CONTENT
Because of the way hologram screen is created, the artist on stage can actually interact with the 3D projections, helping boost the value of the illusion to the audience. The projection of the image can be moved along with the artist’s movements, one of the key benefits of this is to keep the audience closely engaged in the content.
PROJECTIONS CAN SURROUND THE ARTIST
The hologram screen system is designed to be truly immersive for the audience, and so it appears as if the person on-stage is completely surrounded by holographic content.
Transparent Holographic mesh screen specifications:
| Material | Width | Length | Weight |
| Ployamide | 3.1-9.5m | 50m | 17g/m2 |
| Gain | Density | Transmittance | Color |
| 2-2.4 | 10 holes/cm | 78%-85% | White, Grey,Black |
| Color | Width(meter) | Length(meter) |
| Grey | 3.1 / 3.6 / 5.8/ 8 | 30 |
| Black | 3.1 / 3.6 / 8 | 30 |
| White | 3.1/ 3.6 / 5 / 7/ 8 | 30 |
3D Holographic Mesh Projection Screen is the perfect solution for live events, allowing participants to make presentations behind our near-invisible gauze while informative and entertaining holographic effects appear to float in front and around them.
The portability of 3D Holographic Mesh Projection Screen is a huge advantage, it’s perfect for touring as it is made out of a material, it is very accessible to the entertainment industry. Another allowance that the material affords is the ability to use it with a circular truss,creating a 360 surface to project onto it.
The holographic mesh becomes a free floating invisible holographic screen to any desired length once setup in an environment with controlled lighting. Once setup the material becomes completely invisible, allowing you to show 3D holographic images of people or products that look like they floating in mid-air.
It is usually a product used in eventing or indoors as we require controlled lighting to achieve the desired results. This is the greatest ‘wow’ factor one can achieve using holographics.
Holographic mesh is highly suitable for large stages, requiring less depth than other projection systems of similar dimensions. The frame structure for mounting the screen allows many variations. The material is light, good to store, immediately available, long using life and big size, the max size can be 9.5x30m.
