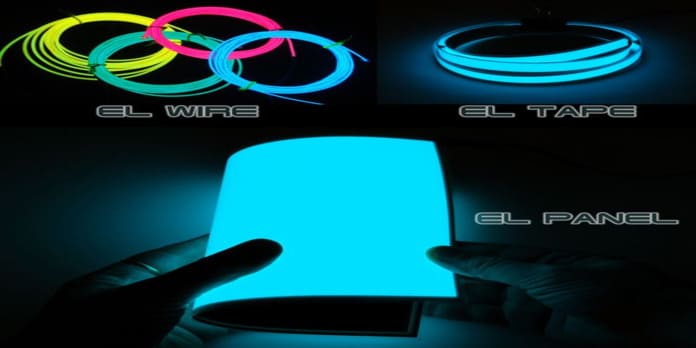

Electroluminescent (EL) backlighting is a popular technology used to provide illumination for various types of displays and surfaces. This technology is particularly valued for its uniform light distribution, thin profile, and energy efficiency.
What is EL Backlighting?
EL backlighting uses electroluminescent panels to provide light behind displays or surfaces. When an alternating current (AC) is applied, the phosphor material in the EL panel emits light, creating a uniform glow.
How EL Backlighting Works
Structure of EL Panels:
Front Electrode: Made of a transparent conductive material like Indium Tin Oxide (ITO) to let light pass through.
Phosphor Layer: Contains electroluminescent phosphor compounds that emit light when excited by an electric field.
Dielectric Layer: Provides insulation and improves the efficiency of the electric field across the phosphor layer.
Rear Electrode: Usually made of a conductive material like aluminum or silver.
Substrate: Provides mechanical support and can be made of flexible or rigid plastic.
Electric Field Application:
An alternating current (AC) voltage is applied across the electrodes.
The electric field excites the electrons in the phosphor layer.
As the electrons return to their ground state, they release energy in the form of light, creating a uniform glow across the panel’s surface.
Advantages of EL Backlighting
Uniform Illumination:
EL backlighting provides a consistent and even light distribution across the entire surface, eliminating hotspots and shadows.
Thin and Lightweight:
EL panels are extremely thin, often less than 1 mm, and lightweight, making them easy to integrate into various applications without adding bulk.
Low Power Consumption:
EL backlighting is energy-efficient, consuming significantly less power compared to other backlighting technologies like LEDs or CCFLs.
Flexible:
EL panels can be bent, curved, and cut into various shapes and sizes, making them suitable for custom applications and installations on non-flat surfaces.
Cool Operation:
EL panels generate very little heat, making them safe to touch and suitable for temperature-sensitive environments.
Long Lifespan:
EL panels have a long operational life and are resistant to shock and vibration, making them durable and reliable.
Silent Operation:
EL panels operate silently, without the buzzing or humming often associated with other types of lighting.
Applications of EL Backlighting
1.Consumer Electronics:
Keyboards: Provides even backlighting for computer and laptop keyboards, enhancing visibility in low-light conditions.
Displays: Used in small displays like those found in watches, calculators, and instrument panels for uniform illumination.
2.Automotive:
Instrument Panels: Offers uniform backlighting for car dashboards and instrument clusters, providing clear visibility.
Ambient Lighting: Used for interior ambient lighting in vehicles, enhancing the aesthetic appeal.
3.Medical Devices:
Medical Displays: Provides backlighting for medical instruments and displays, ensuring clear readability in various lighting conditions.
4.Aerospace:
Cockpit Displays: Used for backlighting instrument panels in aircraft, offering clear visibility and low power consumption.
5.Advertising and Signage:
Billboards and Signs: Provides eye-catching, uniform illumination for advertisements and signs, making them visible even in low-light conditions.
6.Wearable Technology:
Fashion and Safety Gear: Integrated into clothing and accessories for both decorative purposes and increased visibility in low-light conditions.
7.Architecture and Interior Design:
Ambient and Decorative Lighting: Used in homes, offices, and commercial buildings for soft, uniform ambient lighting and decorative panels.
Electroluminescence lighting technology offers a unique combination of flexibility, energy efficiency, and even illumination, making them suitable for a diverse range of applications. Their ability to provide uniform light in thin, customizable forms opens up numerous possibilities for innovative design and practical use. Whether in consumer electronics, automotive, aerospace, or fashion, EL lamps continue to be a valuable lighting technology for modern applications.
