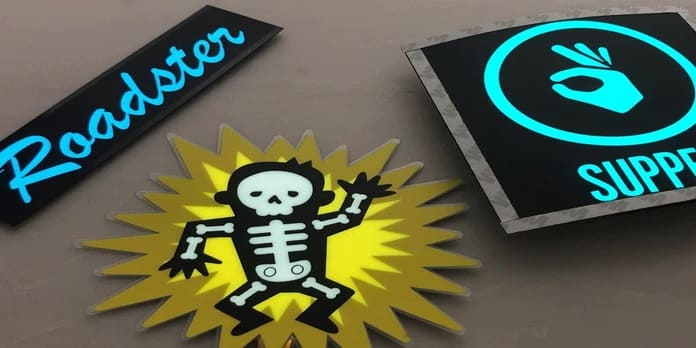

Electroluminescence (EL) lamps are a fascinating and versatile type of lighting technology that utilizes the principle of electroluminescence to produce light.
How EL Panels Work
Structure:
Front Electrode: Typically made of a transparent conductive material like Indium Tin Oxide (ITO), allowing light to pass through.
Phosphor Layer: Contains electroluminescent phosphor compounds that emit light when excited by an electric field. Common materials include zinc sulfide doped with copper.
Dielectric Layer: Provides insulation and improves the efficiency of the electric field across the phosphor layer.
Rear Electrode: Usually made of a conductive material like aluminum or silver.
Substrate: Acts as the base and provides mechanical support, often made of flexible or rigid plastic.
Operating Principle:
When an alternating current (AC) voltage is applied across the electrodes, the electric field excites the electrons in the phosphor layer.
The excited electrons release energy in the form of visible light as they return to their ground state.
The transparent front electrode allows the emitted light to pass through, creating a uniform glow across the panel’s surface.
AC Power Supply:
EL panels require an AC power supply because the alternating current helps to continuously excite the phosphor particles, maintaining a steady light output.
Applications of EL Panels
EL panels are highly versatile and find applications across various industries due to their unique properties.
1.Consumer Electronics:
Keyboard Backlighting: Provides even, low-power illumination for computer and laptop keyboards.
Display Backlighting: Used in small displays like those found in watches, calculators, and instrument panels.
2.Automotive:
Dashboard Lighting: Offers uniform backlighting for car dashboards and instrument clusters.
Decorative Lighting: Used for ambient lighting inside vehicles, enhancing the aesthetic appeal.
3.Advertising and Signage:
Outdoor Billboards: Provides eye-catching, uniform illumination for advertisements.
Storefront Displays: Used in window displays to attract customers with glowing signs and logos.
4.Safety and Emergency:
Exit Signs: Provides high-visibility, low-power illumination for exit signs in buildings.
Emergency Path Lighting: Used for marking escape routes and exits in case of power outages.
5.Wearable Technology:
Fashion: Integrated into clothing and accessories for decorative and safety purposes.
Safety Gear: Used in jackets, vests, and helmets for increased visibility in low-light conditions.
6.Architecture and Interior Design:
Ambient Lighting: Used in homes and commercial buildings for soft, uniform ambient lighting.
Decorative Panels: Integrated into walls, ceilings, and furniture for aesthetic lighting effects.
7.Aerospace:
Cockpit Displays: Provides backlighting for instrument panels in aircraft, offering clear visibility and low power consumption.
Toys and Gadgets:
Light-Up Toys: Used in children’s toys to provide interactive and visually appealing lighting effects.
8.Medical Devices:
Backlit Displays: Used in medical equipment for clear, readable displays in various lighting conditions.
9.Event and Stage Lighting:
Props and Costumes: Integrated into stage props and costumes for theatrical productions and concerts to create dramatic lighting effects.
Advantages of Electroluminescence Lamps
Versatility:
Can be used in a wide range of applications, from consumer electronics to automotive and architectural lighting.
Design Flexibility:
Their thin and flexible nature allows for creative and innovative design possibilities, including custom shapes and sizes.
Energy Efficiency:
Low power consumption translates to energy savings and reduced operational costs.
Even Illumination:
Provides consistent and even lighting without hotspots, which is beneficial for displays and backlighting.
Durability:
Resistant to impacts and vibrations, making them suitable for environments where durability is crucial.
Low Heat Emission:
Generates minimal heat, reducing the risk of burns and making them safe for use in close proximity to heat-sensitive materials.
