Electroluminescent (EL) panels are thin, flexible sheets that emit light when an electrical current is applied. They are widely used for backlighting, signage, and decorative purposes due to their ability to produce even, diffused illumination.

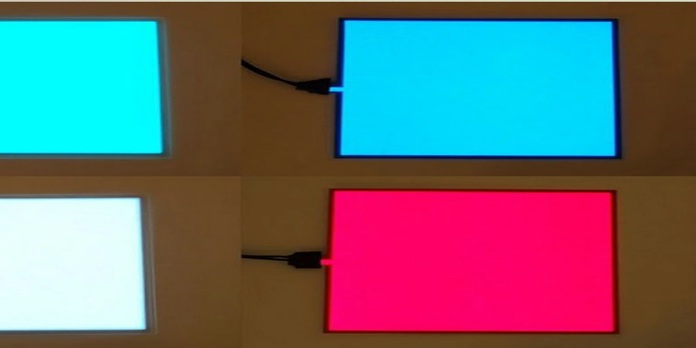

How EL Panels Work
Electroluminescent panels work based on the principle of electroluminescence, where a material emits light in response to an electric field. The key components of an EL panel include:
1.Phosphor Layer:
A layer of phosphorescent material that emits light when excited by an electric field.
2.Conductive Layers:
Two conductive layers (typically made of indium tin oxide and a metal electrode) sandwich the phosphor layer. One of these layers is usually transparent to allow light to pass through.
3.Dielectric Layer:
A dielectric layer separates the phosphor from the electrodes to ensure efficient light emission and electrical insulation.
4.Substrate:
The entire assembly is placed on a substrate, which can be flexible or rigid, depending on the application.
When an alternating current (AC) is applied across the conductive layers, the phosphor layer emits light, producing a uniform and consistent glow.
Key Features
1)Thin and Flexible:
EL panels are extremely thin (typically less than 1 mm) and can be made flexible, allowing for versatile applications on curved or irregular surfaces.
2)Even Illumination:
Provides uniform and diffused light across the entire surface, eliminating hotspots and shadows.
3)Low Power Consumption:
Consumes relatively low power, making it energy-efficient and suitable for battery-operated devices.
4)Cool Operation:
Emits light without generating significant heat, making it safe to touch and ideal for heat-sensitive applications.
5)Long Lifespan:
Offers a long operational life, typically ranging from 5,000 to 20,000 hours, depending on usage and operating conditions.
6)Customizable:
Available in various shapes, sizes, and colors to meet specific design and application requirements.
Advantages
Versatility:
Can be used in a wide range of applications, from backlighting and signage to decorative lighting and wearable technology.
Aesthetic Appeal:
Provides a sleek and modern look with its thin profile and even illumination.
Energy Efficiency:
Low power consumption makes it suitable for portable and battery-operated devices.
Safety:
Operates at low temperatures, reducing the risk of burns and heat-related issues.
Ease of Use:
Simple to install and integrate into various products and designs.
Applications
*Backlighting:
Used in displays, keypads, instrument panels, and signage to provide even and consistent backlighting.
Ideal for devices such as watches, calculators, and control panels.
*Signage:
Employed in exit signs, advertising displays, and informational signs to create eye-catching and energy-efficient signage.
Suitable for both indoor and outdoor applications.
*Decorative Lighting:
Used in architectural lighting, interior design, and event decorations to create unique and dynamic lighting effects.
Can be integrated into furniture, walls, and ceilings.
*Wearable Technology:
Applied in clothing, accessories, and safety gear to provide illumination and enhance visibility.
Popular in fashion, sports, and safety industries.
*Automotive:
Integrated into car dashboards, instrument clusters, and interior lighting to provide stylish and functional illumination.
Enhances visibility and aesthetics in automotive design.
*Aerospace:
Used in aircraft cabin lighting, cockpit displays, and safety signs to provide reliable and energy-efficient illumination.
Meets the stringent requirements of the aerospace industry.
*Toys and Gadgets:
Incorporated into toys, gadgets, and novelty items to create fun and interactive lighting effects.
Appeals to both children and adults.
